MIG 280/4 Turbo

MIG 280/4 Turbo

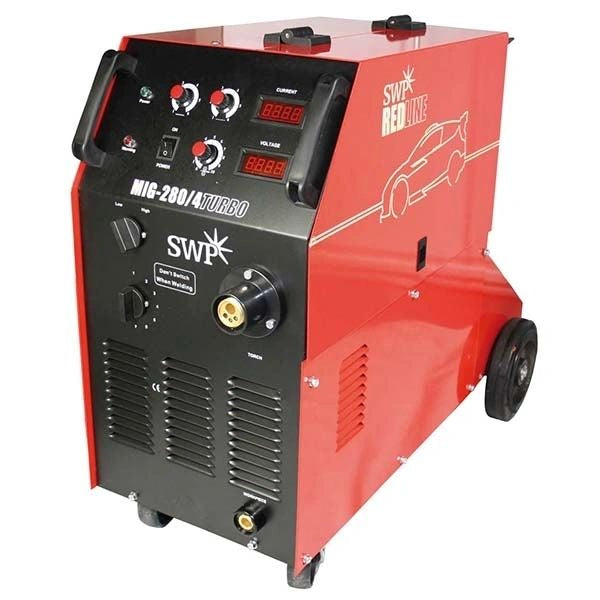

The SWP MIG 280/4 Turbo welder is a powerful, single phase, compact machine supplied with a 4-roll drive feed system. The welder features a robust motor and gearbox, a digital amp and voltmeter as well as having a low spatter transformer design. The machine comes with a spot and stitch timer, is fan-cooled for efficiency and will support full size gas cylinders.

M25-3 torch and 2068 regulator included

Supplied with 0.6-0.8mm and 1.0-1.2mm guide rollers

Features:

• No Load Voltage: 40V (Max.)
• Protection: IP21
• Output Current: 200 Amps
• Fuse: 32 Amps
• Welding Voltage Range: 16 24V
• Welding Wire Range: 0.6 1.2mm
• Welding Wire Dia.: 200 300mm
• Mains Connection: 230V 50/60 Hz
• Welding Current: 40 280 Amps
• KVA: 7.6
• Insulation Class: F
• Duty Cycle: 40% 200 Amps & 100% 130 Amps
• Weight (approx.): 60kg
