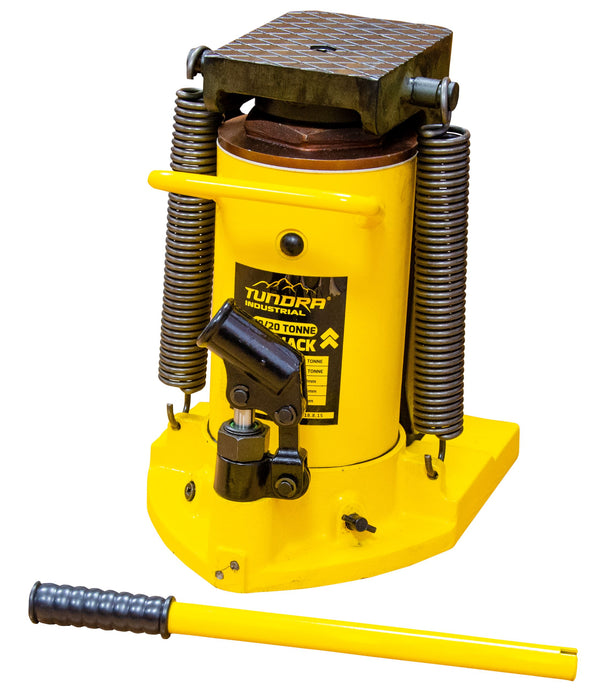

Tundra Heel & Toe Jack

Hydraulic toe jack with multi-function head and toe lifting mechanisms
Quick, smooth effortless operation by hand
Lifting points on the toe and head allows for a versatile lifting
Toe constructed from strong mould casted alloy steel with no welded or bent parts to weaken the material
High strength return spring enables rapid ram retraction
Swivelling pump handle assembly allows the operator to access and pump the unit from a variety of positions
Built-in safety valve prevents over-pressurization
Internal overflow valve functions as a stroke limiter
Convenient carry handle

• SKUTUNJKTOE 10-20
• Max. Capacity 10 Tonne (Toe), 20 Tonne (Heel)
• Closed Height 285mm
• Stroke 160mm
• Jaw Height 20mm
• Gross Weight 31 kgs

• SKUTUNJKTOE 15-30
• Max. Capacity 15 Tonne (Toe), 30 Tonne (Heel)
• Closed Height 305mm
• Stroke 160mm
• Jaw Height 20mm
• Gross Weight 46.4 kgs
