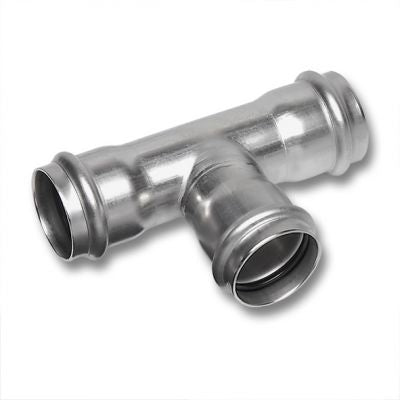

Stainless Steel 316 Press Fittings – EPDM Seal
These Stainless Steel 316 press fittings are supplied with EPDM (Ethylene Propylene Diene Monomer) seals and are designed for dependable performance across a wide range of commercial and industrial water applications. Manufactured from high-quality stainless steel, they provide excellent corrosion resistance, long service life and compliance with potable water standards.
Seal Type
EPDM – Ethylene Propylene Diene Monomer
Size Range
15mm to 168mm
Pressure Rating
Up to 16 bar
Operating Temperature Range
Minimum: -30°C
Maximum: 120°C
Material Specification
Formed fittings manufactured from 1.4404 stainless steel in accordance with EN 10088 (316L)
Threaded fittings manufactured from 1.4408 stainless steel in accordance with EN 10283 (316L)
Compatible with stainless steel press pipe manufactured from 1.4404 (316L) in accordance with EN 10312
Approvals & Warranty
WRAS approved
50-year manufacturer warranty
Typical Applications
Suitable for use in:
Potable and drinking water systems
Hot water services (HWS) and domestic heating
Commercial and industrial water services
Boosted cold water services (BCWS) and risers
Hydronic and low-pressure hydraulic systems
Chilled water systems, including glycol concentrations up to 50%
Compressed air systems with oil content below 25 mg/m³
Fire suppression and sprinkler systems
Purified water, grey water and cooling water systems
These EPDM-sealed press fittings are ideal for installations where water quality, system integrity and long-term reliability are critical, making them suitable for plantrooms, commercial buildings and industrial environments.
If in stock, order by 12PM to get delivered next working day!*
*We use 24 hours service with carriers in most cases so that you can get your order delivered on time. We cannot always guarantee that the courier will deliver within 24 hours of despatch.
| Variant | Quantity | Price | Total |
|---|---|---|---|
22 x 15 x 22
12110221522
|
|
||
|
28 x 15 x 28
12110281528
|
|
||
|
28 x 22 x 28
12110282228
|
|
||
|
35 x 15 x 35
12110351535
|
|
||
|
35 x 22 x 35
12110352235
|
|
||
|
35 x 28 x 35
12110352835
|
|
||
|
42 x 15 x 42
12110421542
|
|
||
|
42 x 22 x 42
12110422242
|
|
||
|
42 x 28 x 42
12110422842
|
|
||
|
42 x 35 x 42
12110423542
|
|
||
|
54 x 15 x 54
12110541554
|
|
||
|
54 x 22 x 54
12110542254
|
|
||
|
54 x 28 x 54
12110542854
|
|
||
|
54 x 35 x 54
12110543554
|
|
||
|
54 x 42 x 54
12110544254
|
|
||
|
66.7 x 22 x 66.7
12110662266
|
|
||
|
66.7 x 28 x 66.7
12110662866
|
|
||
|
66.7 x 35 x 66.7
12110663566
|
|
||
|
66.7 x 42 x 66.7
12110664266
|
|
||
|
66.7 x 54 x 66.7
12110665466
|
|
||
|
76.1 x 22 x 76.1
12110762276
|
|
||
|
76.1 x 28 x 76.1
12110762876
|
|
||
|
76.1 x 35 x 76.1
12110763576
|
|
||
|
76.1 x 42 x 76.1
12110764276
|
|
||
|
76.1 x 54 x 76.1
12110765476
|
|
||
|
76.1 x 66.7 x 76.1
12110766676
|
|
||
|
88.9 x 22 x 88.9
12110882288
|
|
||
|
88.9 x 28 x 88.9
12110882888
|
|
||
|
88.9 x 35 x 88.9
12110883588
|
|
||
|
88.9 x 42 x 88.9
12110884288
|
|
||
|
88.9 x 54 x 88.9
12110885488
|
|
||
|
88.9 x 76.1 x 88.9
12110887688
|
|
||
|
108 x 22 x 108
121110822108
|
|
||
|
108 x 28 x 108
121110828108
|
|
||
|
108 x 35 x 108
121110835108
|
|
||
|
108 x 42 x 108
121110842108
|
|
||
|
108 x 54 x 108
121110854108
|
|
||
|
108 x 66.7 x 108
121110866108
|
|
||
|
108 x 76.1 x 108
121110876108
|
|
||
|
108 x 88.9 x 108
121110888108
|
|
